產品概述：

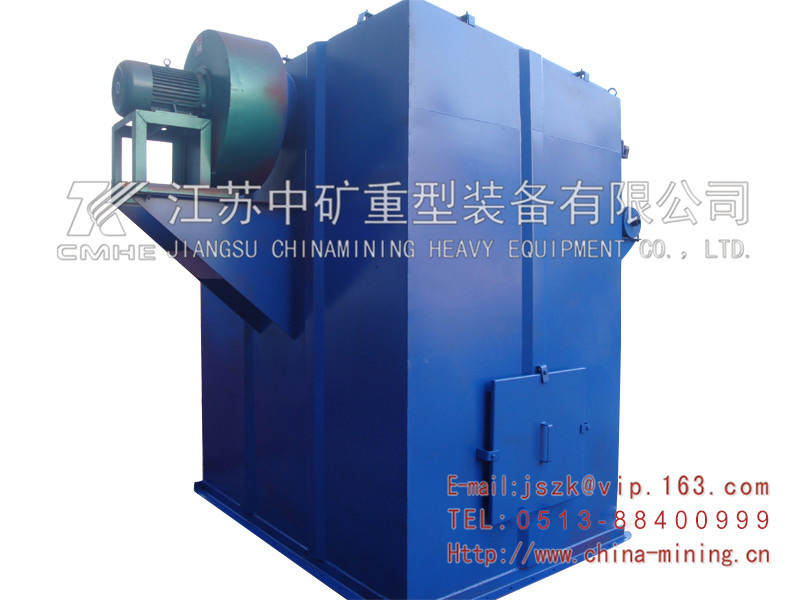

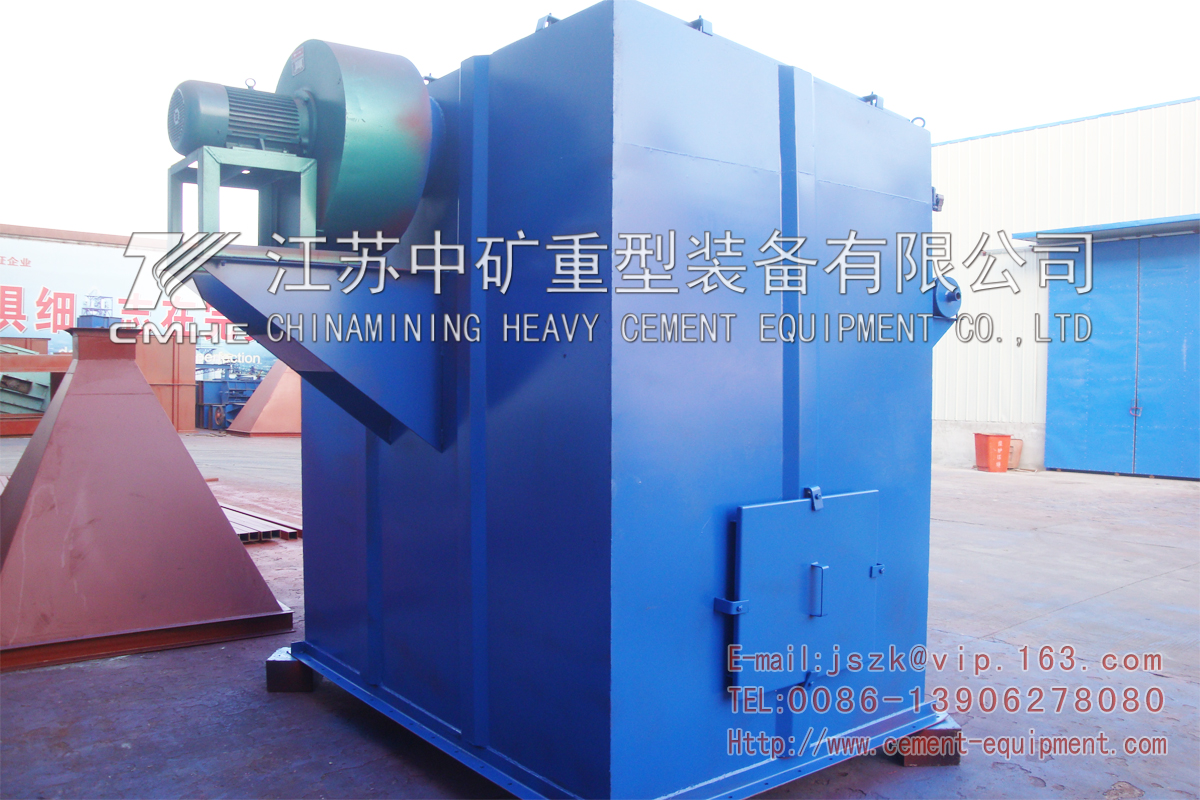

　　HMC型脈沖單機除塵器是我公司消化吸收國內外同類產品經改進后設計而成的小型袋式除塵器。除塵器采用脈沖噴吹的清灰方式。具有清灰效果好、凈化效率高、處理風量大、濾袋壽命長、維修工作量小、運行安全可靠等的優點。廣泛用于冶金、建材、機械、化工、礦山等各種工礦企業非纖維性粉塵和工業粉塵的除塵凈化與物料回收。
　　HMC型脈沖單機除塵器共有六個規格，每種規格又可分為標準帶灰斗式A型和敞開法蘭式(無灰斗)B型二種。其結構主要由過濾室、濾袋、凈氣室、灰斗、卸灰閥、脈沖噴吹清灰裝置、電控箱組成，箱體全部采用焊接結構。檢修門用泡沫膠條密封，保證除塵器嚴密不漏風。

Ⅰ.Brief introduction
        Type HMC pulse single bag filter is digested abroad and domestic same product by our company and designed small type bag filter. Bag filter is used pulse and spraying way. It is characterized by good dust efficiency, high clean efficiency, large handle volume, long life of filtering bag, small maintenance and dependable driving. It is widely used in metallurgical, building material, machinery, chemical industry and ore etc. all kinds of ore enterprise etc. non-fibre industry powder to purify dust and material reclaim.
        Bag filter have six specifications. Every specification has type A with dust hopper and type B with flange(no dust hopper). The structure is made up of filtering room, filtering bag, purifying chamber, dust hopper, flap valve, flap valve, pulse spraying dust device and electric control cabinet etc. Case body is used welding structure. Inspected door is sealed with foam rubber and guarantee dust filter not leakage.
This product have six specifications, filtering area is from 24 to 84m2. Handle volume is from 1500m3/h to 9000m3/h.Design it especially according to fact need.

構造結構特點：
　　除塵器本體由殼體、濾袋總成、噴吹清灰裝置、排灰裝置四個部分組成。
　　殼體部分由上箱體、中箱體、灰斗、進出風口組成。
　　濾袋總成由濾袋、濾袋框架等組成。
　　噴吹清灰裝置由氣包、噴吹管、脈沖閥、電磁控制閥、電控儀等組成。
　　排灰裝置由電機、減速器、螺旋輸送機、星形卸料閥組成。
　　脈沖閥I型采用直角脈沖閥，Ⅱ型采用直通脈沖閥，減少了脈沖閥自身的阻力，是一種較為理想的脈沖噴吹方式。
Ⅱ.Structure features
        The body of bag filter is made up of shell, filtering bag assumable, spraying dust device and dust discharge device.
        Filtering bag assemble is made up of filtering bag and filtering bag frame etc.
        Spraying dust discharge device is made up of gas bag, spraying pipe, pulse valve, electric control valve and electric control meter etc.
        Discharge dust device is made up of motor, reducer, screw conveyor and star discharge valve.
        Pulse valve type I is used right angle pulse valve, Type II is used right pulse valve and reduce the resistance of pulse valve which is an ideal pulse spraying type.


工作原理：
　　HMC型除塵器的進風口設在灰斗上，當含塵氣體從進風口進入灰斗后先碰上進風口的擋板，由于慣性作用，使氣體粗顆粒粉塵直接進入灰斗，起到預收塵的作用，進入灰斗的氣流隨后折而向上通過內部裝有金屬骨架的濾袋，粉塵被收集在濾袋的外表面，凈化后的氣體進入濾袋室上部的清潔室，匯集到出風管排出。室內收塵袋分為若干排，按照給定的時間間隔對每排收塵袋進行清灰。當脈沖閥開啟時，即向濾袋內噴入高壓空氣，以清除濾袋表面上的灰塵。各排濾袋的脈沖噴吹寬度和清灰周期，由專用的清灰程序控制器自動連續控制。除塵器的構造和工作原理參見附圖。
　　含塵氣體由灰斗(或下部敞開式法蘭)進入過濾室，較大顆粒直接落入灰斗或料倉。

Work principle
        Inlet of Type HMC dust filter is designed on dust hopper. Dust gas first touch with stopper plate from air inlet to dust hopper. As the interia, crude material in the gas directly will enter into dust hopper and have the effect of pre-dust. Air flow from dust hopper is passed through filtering bag with metal frame. Powder dust is collected on the surface of filtering bag. Purified air enters into cleaning room on the top of filtering bag. Collect outlet pipe and discharge. Dust bag indoor is divided into many rows according to given interval and clean dust of every row filtering bag. When pulse valve is starting, filtering bag is sprayed high pressure atmosphere and smooth away powder dust of filtering bag surface. The width and dust frequency of pulse spraying is controlled by special dust program controller. The structure and work principle of dust filter refer to attaching drawing.
        Dust gas enter filtering chamber from dust hopper (or bottom open flange) and crude grain enter into dust hopper or dust silo.

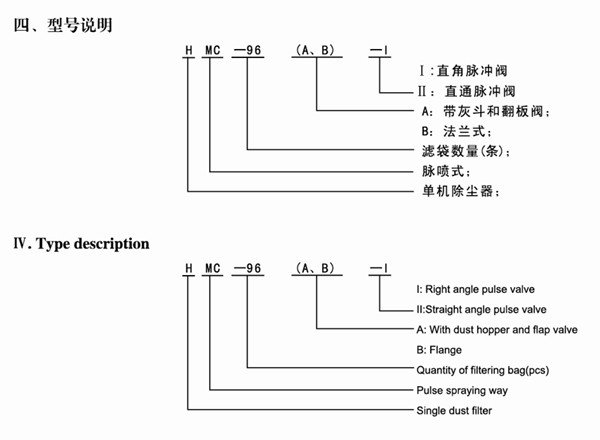

主要技術性能參數 V .Main technical capacity parameter
HMC型脈沖單機袋式除塵器技術性能參數
Technical capacity parameter of type HMC pulse single bag filter

HMC型脈沖單機袋式除塵器外部參數及聯接尺寸

訂貨要求
1、訂貨時，客戶請寫清楚規格、型號，同時提供粉塵治理點的工況參數，便于更好地為 客戶服務。
2、如客戶委托我公司選型設計，應在合同中注明，具體事宜與我公司營銷部聯系。
3、設備供應范圍：
a.主機設備：以進出口法蘭為界，下部以灰斗卸灰法蘭為界，氣路部分以分氣箱進氣口為界；
b.附件設備：定時清灰控制器；
c.隨機文件：產品說明書、安裝圖、產品合格證；
d.本公司遵循不斷完善產品性能的原則，對產品規格、性能不斷改進，或許難以及時通知閣下
工程技術參數與樣本不符，以隨機技術文件為準。
Ⅶ.Order request
When placing an order, the customer should write the specification, type and work condition parameter at the same time of dust manage. Provide good service for the customer conveniently.
If the customer consigns us to select the design, it will mark in the contract. The details will contact with our sales department.
Supply scope of equipment:
Main equipment: The flange of inlet and outlet is the boundary. Dust discharge flange is bottom boundary.
Attaching equipment: Time clean dust controller.
Random document: Operation manual, installation drawing and quality certificate.
Our company is on the basis of product capacity. If specification and capacity is improved, we will inform the customer. If the technical parameter is not complied with the sample, the customer should be on the basis of random technical document.
